Top Running Overhead Crane

Top running overhead crane is designed to lift massive loads. Top running overhead cranes are designed to travel on top of a runway system that is either supported by engineered columns or building columns.

http://www.craneskit.com/products/

Advantages of Top Running overhead crane

Top running overhead crane is much heavier than under hung equipment. For top-running systems, the end trucks are supported on rails, which are attached to the top of the crane runway. Besides, as the best and efficient lifting solution in large coverage facility, top running overhead crane or bridge crane can be designed in both single girder, double or box girder, there are enough options to suit your demands.

Single Girder Top Running Overhead Cranes

Providing you excellent value for your application, single girder designs allow you to be cost effective without compromising performance. Over the lifetime of the crane, you will save on new support structures as it has reduced wheel loads. This allows you to add more lifting capabilities to your runway structure without upgrading.

Advantages of Single Girder Top Running Overhead Crane

• Low dead weight and more headroom by using a low headroom monorail hoist. It is the most economical solution in buildings with a span over 90 ft.
• Lower production cost, and therefore lower price, than a double girder model.

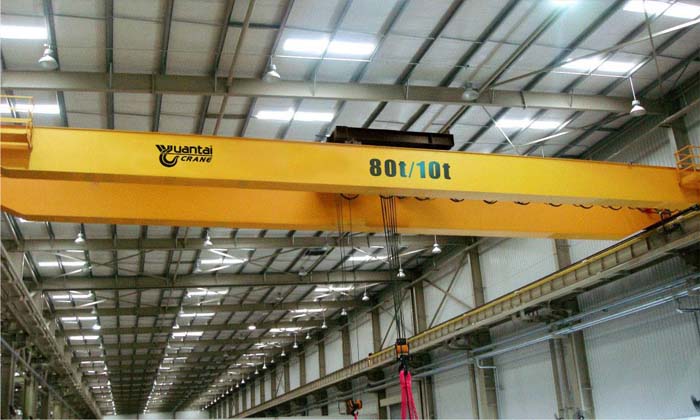

Double Girder Top Running Overhead Crane

Designed for applications with load capacities typically over 25 tons (25 tonnes), double girder cranes are used when you need a complete lifting solution. Double girder cranes give a better height of lift compared to a single girder crane as the hook travels between the beams.

http://www.craneskit.com/products/

Advantages of Double Girder Top Running Overhead Crane

• Higher hook lift, since the hook can be pulled up between the main girders.
• Extremely rigid girder construction and durable trolley design are well suited for heavy service applications.
• Double girder designs typically provide you a better hook height than single girder designs as the hoist is mounted on top of the bridge rather than underneath.

With strong and professional technology team, Dongqi Group can provide your company more suitable design for your top running overhead crane.

Crane services of DQCRANES

Portable Gantry Crane

Dongqi Group can supply various types of portable gantry crane to satisfy your needs. Dongqi portable gantry crane is excellent with high quality and low price.

Portable gantry crane is mainly made up of steel structure, electric organ, lifting mechanism, and movable tire. For its simple and compact structure, the crane can be installed and maintained easily.

http://www.craneskit.com/products/

Dongqi Various Types of Portable Gantry Crane

Portable Gantry Crane Applications

Portable gantry crane is widely used in the workshop, warehouse, garage, and many other indoor and outdoor places for its equipped with the features of light dead weight and easy operation.

• Lifting materials anywhere in a facility
• Localized handling
• Over machines for maintenance and pulling product
• Anywhere lifting equipment is needed on an infrequent basis

Portable gantry crane can reach all corners of your plant. Lift and move materials, or use for pulling motors, equipment, and other heavy machinery. Quick disassembly for transport by service truck.

Advantages of Portable Gantry Crane

• Convenient to carry
• Easy installation
• Fast lifting speed
• Widely using range
• Operation with easy
• Stable and reliable

Portable Gantry Crane in Dongqi Group

DQCRANES portable gantry crane has unique design philosophy and small limit size, it can also be used with CD1, MD1 model or other ordinary electric hoists. For its practicality, this kind of rolling gantry crane is well received by the clients globally.
http://www.craneskit.com/products/

Being committed to technological innovation and development and making superior quality products, DQCRANES always cooperates with famous European machinery manufacturers, such as Britain SZW, German NORD and SIEMENS and French Schneider, etc. Dongqi Group is worthy of your trust.

5 Ton Single Girder Overhead Crane Installation in Maldives

Mr Oscar and his team planed to stay in Male from 23th to 30th in October 2016 to finish the installation working of the 5 ton single girder overhead crane for one of our customers in Male.

WEBSITE:www.craneskit.com EMAIL:sales@craneskit.com

About our customer:

(Fuel Suppliers Maldives Pvt Ltd) is dedicated to maintain its position as a leader in providing quality Fuel Products and Services to business, community and individuals through a highly trained staff while maintaining the obligation of the society. Because the working site is located on a island, so Mr Oscar and engineer have to go to work by boats, at least twice one day.

5 Ton single girder overhead crane installation site

• The crane mode: HD European single girder overhead crane,
• Parameters: 5 Ton capacity, 24.38 Meters span and 10.7 Meters lift height, Power supply 400V 50HZ 3P, here is the technical drawing:

HD European single girder overhead crane is used for the maintenance for the fuels boats, which are always working in the sea to collect fuels, after 4 years, it will come back to the maintenance warehouse to maintenance main parts.

With the adequate preparation, the installation of the 5 Ton single girder overhead crane goes smoothly, electrical installation is the main task. During electrical connection, there is a small problem: lift motor adjustment, firstly Mr Oscar and engineers did not find the drawings at site, so they have to install fully through their technical ability. Along with customer’s cooperation, they solve the problem at last .The project manager Mr Solah told Mr Oscar that he was very satisfied with the 5 Tons single girder overhead crane whole installation process. Here are the installation pictures:

25 Ton Double Drum Electric Winch

After finished 5 ton single girder overhead crane installation , Mr Solah ask Mr Oscar to give the solution of the existed damaged winch , which was used for pulling the working boats from the sea to maintenance warehouse .

After talked with technical engineers , Mr Oscar give the solution of 25 Tons double drum electric winch , the wire rope length 600 meters , together with one set 6 sleave pulley block , which can bear 150 Tons capacity . If so, Mr Solah need to remove previous foundation and establish the new foundation as our technical drawing.

3 Tons Pillar Fixed Jib Crane with Rotation

Besides the 25 tons double drum electric winch , Mr Solah also require the design for 3 Tons pillar fixed jib crane , which will be located besides the sea coast and be used for loading and unloading goods from boats .
WEBSITE:www.craneskit.com EMAIL:sales@craneskit.com
The 3 tons pillar fixed jib crane parameters: 3 Tons capacity, 8 meters lift height and 10 meters total arm length, rotation: 360 degree, the technical drawing is as below:

The process of 5 ton single girder overhead crane installation is favoring and the Maldives’ scenery is so beautiful.

Crane Installation & Commissioning in Algeria

DQCRANE started the trip to Algeria for cranes installation and commissioning in a new steel plant in January, 2017, our engineers scheduled to stay there for one week to finish the crane installation and commissioning work of three double girder overhead cranes.

WEBSITE:www.craneskit.com EMAIL:sales@craneskit.com

Crane specifications:

• Ladle crane 50/20t, span 21.5m, lifting height 18m;
• Double girder overhead crane with grab and magnet 15t, span 21.5m, lifting height 18m.

Girders Transportation and assembly:

The crane girders are fabricated into parts and put into containers, our engineers will do assembly on site; such transportation ways will not influence the performance of cranes. And container transportation can protect the girders and electrics from being damaged.

Crane Installation site:

This time DQCRANE engineers mainly to do crane installation and commissioning of three cranes, since most of the mechanical work have been done by clients, the main work is at electric control connections.

Here DQCRANE sincerely suggest that if there is no professional engineers, please do not try to connect the electric system. DQCRANE has received many feedbacks from clients that because of error connections, the motors and electric control box are burned out, they took much time to replace and lost much due to production delay.

Environment in Algeria:

When most parts of China suffering from the poison fog, and we can see nothing beyond of 10 meters in the sky, our engineers feedback some photos from Algeria, blue sky, white cloud, beautiful sunshine, everything is so wonderful there, even the cranes look so clear under the sky.

Crane Installation & Commissioning in Algeria went so well and our clients are satisfied with our engineers’ work.
WEBSITE:www.craneskit.com EMAIL:sales@craneskit.com

New Year, new market, new challenges, DQCRANE will spare no efforts to provide the services and supports for Algeria market. Come on!!!
